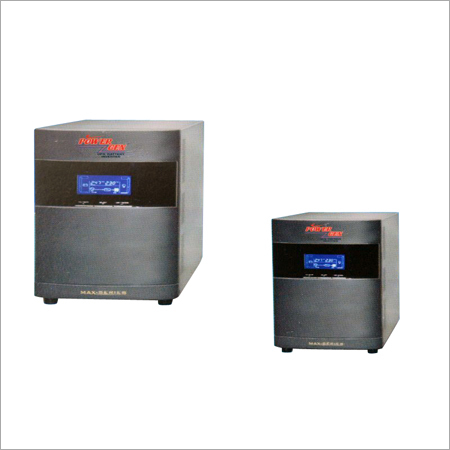

Powergen 1-5 KVA UPS

Powergen 1-5 KVA UPS
Powergen 1-5 KVA UPS
Product Code : 23
Brand Name : POWERGEN
Product Description

We have the market insight & knowledge to manufacture and supply Domestic Online UPS. These products are known among the clients for their effective functioning and less maintenance. Our offered products are used for powering different electrical appliances at residential households in the lack of electricity. Our clients have approved these products for their high precision and accuracy. Domestic Online UPS is available with us in varied models as per the requirements of the clients.



Applications

Small computer network, servers, cyber cafe, banks and offices.

Features

  • High frequency and Double Conversion online technology.
  • High end IGBT based.
  • High end Micro Controller based.
  • Wide input voltage range.
  • Advanced PFC Technology/ Battery Management.
  • Automatic battery charging in UPS off mode.
  • Short circuit and Overload Protection.
  • Smart RS232 Comm. with monitoring software.
  • SNMP card slot (optional).
  • EMl/RFI Noise Filter.
  • Generator Compatible (Supplying Sinewave Voltage).
  • Isolation Transformer (optional).
  • Over Temperature Protection.
  • Different output Voltage settings
  • Output Frequency fixed at 50Hz or can be synchronized with Input Frequency.
  • Static Bypass Enable or Disable.
  • Outletsa Programmable and non programmable.
  • Protection from DC Fan failure.
  • Inbuilt Over Voltage Cut-Off Device.

Technical Specifications

Model

Max-Series

NM36MX1KK11-IB

NM36EM1KK11

NM72MX2KK11

NM72MX3KK11

Capacity


1KVA/800W

1KVA/800W

2KVA/1600W

3KVA/2400W

Input

Voltage Range

When load <50%, range is 118+5VAC~280+5VAC

When <50% load, input range is 160+5VAC~280+5VAC

Frequency

40~70Hz+0.5Hz

Phase

Single phase

Input Power Factor

>0.95

Output

Voltage Range

208/220/230/240V AC

Frequency Range (Battery Mode)

50Hz+0.25 Hz

THD (Linear Load)

<3%

THD (Non-Linear Load)

<5%

Overload Capability

>110%, 30s turn to bypass mode

>150%, instant turn to bypass

Crest Factor

3:1 (max)

Short Circuit Protection

5 cycles turn off inverter, no transfer to bypass, provide alarm (AC Mode)

5 cycles turn off inverter, provide alarm (battery mode), input fuse blown or breaker action

Waveform

Pure sine wave

Tansfer time AC to Bypass mode

4ms (typical 2.5 ms)

Efficiency

85%~92%

Battery

DC Voltage

36VDC (3 Batt.7.2AH Inside)

36VDC

72VDC

72VDC

Charge Current

0.7A

0.7A~06A

0.7A~08A

0.7A~08A

Communication Interface


RS232: SNMP (optional)

LEd/LCD Indication


LCD Indications

Noise Level


<45dB

Dimensions Product (LxWxH) in mm


400x145x237

285x145x220

421x190x336

421x190x336

Net Weight product (kg)


13.9 kg

4.08 kg

12.10 kg

12.52 kg
