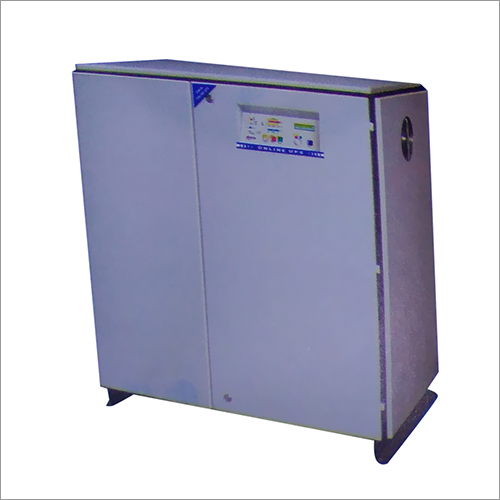

Online UPS Supermax-Series-II

Online UPS Supermax-Series-II
Online UPS Supermax-Series-II
Product Code : 5KVA-30KVA
Product Description

Online UPS Supermax-Series-II

Applications:

Software Centers, mission critical process, offices, railways, airport, hospitals, defence, telecome centers, chemical plants, pharmaceutical laboratry and all type of Three Ph. load e.g. 3 ph. motor, lifts etc.

Features:

  • True online Double Conversion technology.
  • High end IGBT based.
  • High end Micro Controller/DSP based.
  • Automatic battery charging in UPS off mode.
  • Wide Input voltage range.
  • Advanced Battery Management.
  • Short circuit and Overload Protection.
  • Hot Standby. (optional)
  • Galvanic Isolation.
  • 3 Phase in ~ 3 Phase out
  • Specially Designed to suit Indian power and environment conditions.
  • Generator Compatible.
  • Over Temperature Protection.

Technical Specification

Model


SUPERMAX-SERIES-II (3 Phase in ~ 3 Phase out)

Capacity


5 KVA to 30 KVA

Technology


Double Conversion High Freq. Switching PWM, using IGBT's

Input

Voltage Range

360V AC~450V AC + 5V AC, Three Phase

Frequency

45~55Hz

Phase

Three Phase Three Wire (compatible for phase reversal)

Generator Compatibility

Present

Output

Voltage

400V AC Phase to Phase + 3% on 100% unbalance load

Frequency Range

50Hz + 0.5%

Phase

Three Phase Four Wire

THD (Linear Load)

<3%

THD (Non-Linear Load)

<5%

Overload Capability

125% for 2 minutes / 150% for 30 Seconds

Crest Factor

3:1 (max)

Short Circuit Protection

Instant

Waveform

Pure Sine Wave

Static Bypass (optional)

<10ms

Inverter / Overall Efficiency

85%~92%

Battery

DC Voltage

360V DC

Mimic Control Panel

LED for UPS status and LCD for Voltage, Current & Frequency

Audible Alarm

For Battery Low/ DC High/ Output High/ Overload

Communication Interface

RS232; SNMP (optional)

Optional

Hot Stand By

Noise Level / Cooling

< 50dB / Forced Aircooled

Transient Response

For 100% Step Load charge, + 5% and recovers to normal within 20 mili seconds.

Ambient Temperature / Relative Humidity

0-45oC / 0-95% Non-Condensing
